HGOS-PN / HGOB(LS)-PN  Epoch Panacea series

New coating with amazing adhesion and wear resistance

Features of PN Coating

1.  A heat-resistant coating material with excellent adhesion to the tool substrate was achieved by optimizing the Al content.

2.Exhibits with good wear resistance due to Si doping to the AlCr coating layer

3.Exhibits excellent cutting life for cutting materials such as plastic molds, etc. where tool seizure often occurs. (2x the cutting life compared to conventional products.) Provides the long life in cutting processing of materials starting with HPM-MAGIC and including prehardened steel, carbon steel, alloy steel, SUS, SKD61, SKD11, etc.

4.By improving heat resistance, long life are possible for both wet cutting and dry cutting.

 Note) This product obtains less electric conductivity. Therefore, Please caution of using electric transmitted measuring systems.





Characteristics



 Coating peeling of PN Coating



Strengthened bonding structure of PN (Panacea) Coating achieved machining at a higher factor than two the cutting depth.

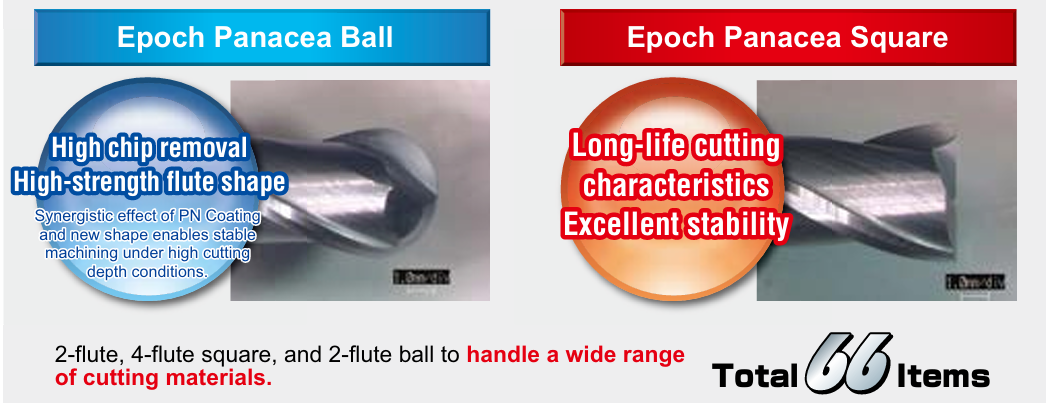

Epoch Panacea Ball & Epoch Panacea Square

※Panacea: Has the meaning of a cure-allor something that solves all kinds of problems.

icsicsics

Dimensions

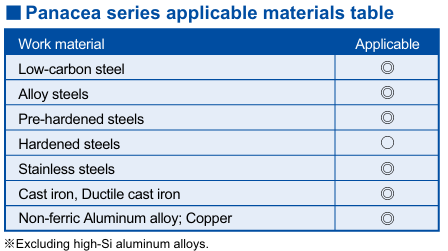

Cutting Area

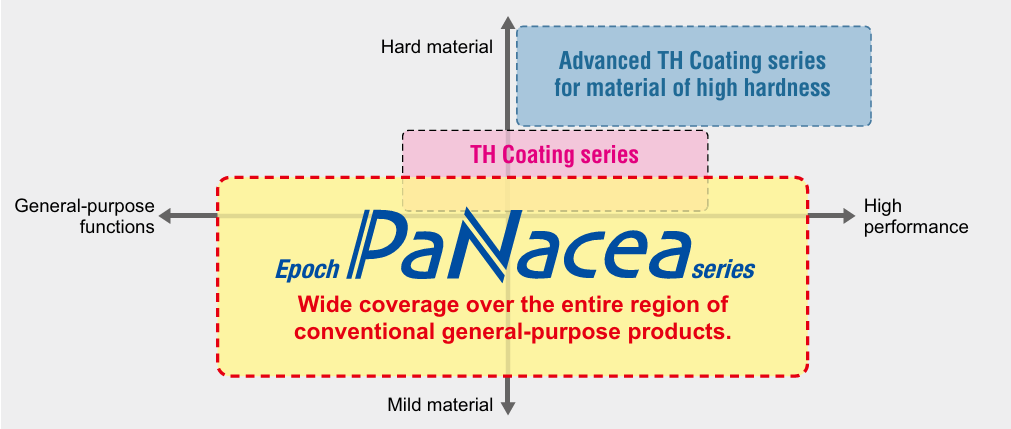

Newly developed PN Coating enableshigh-efficiency cutting in a wide variety of materials over a wide range from roughing to finishing.





Applicable to machining of plastic injection molds, diecast molds, press dies, or various parts.
